G3 Filter Media: Synthetic Roll Stock for HVAC and Filter Fabrication
G3-rated synthetic non-woven filter media supplied in full rolls. Used by HVAC contractors and filter fabricators for pre-filtration pads, coil wrapping, and intake pre-filters. EN779 G3 grade. 2 m × 20 m rolls, 7 mm thick. Order online or call for bulk pricing.
Order Online

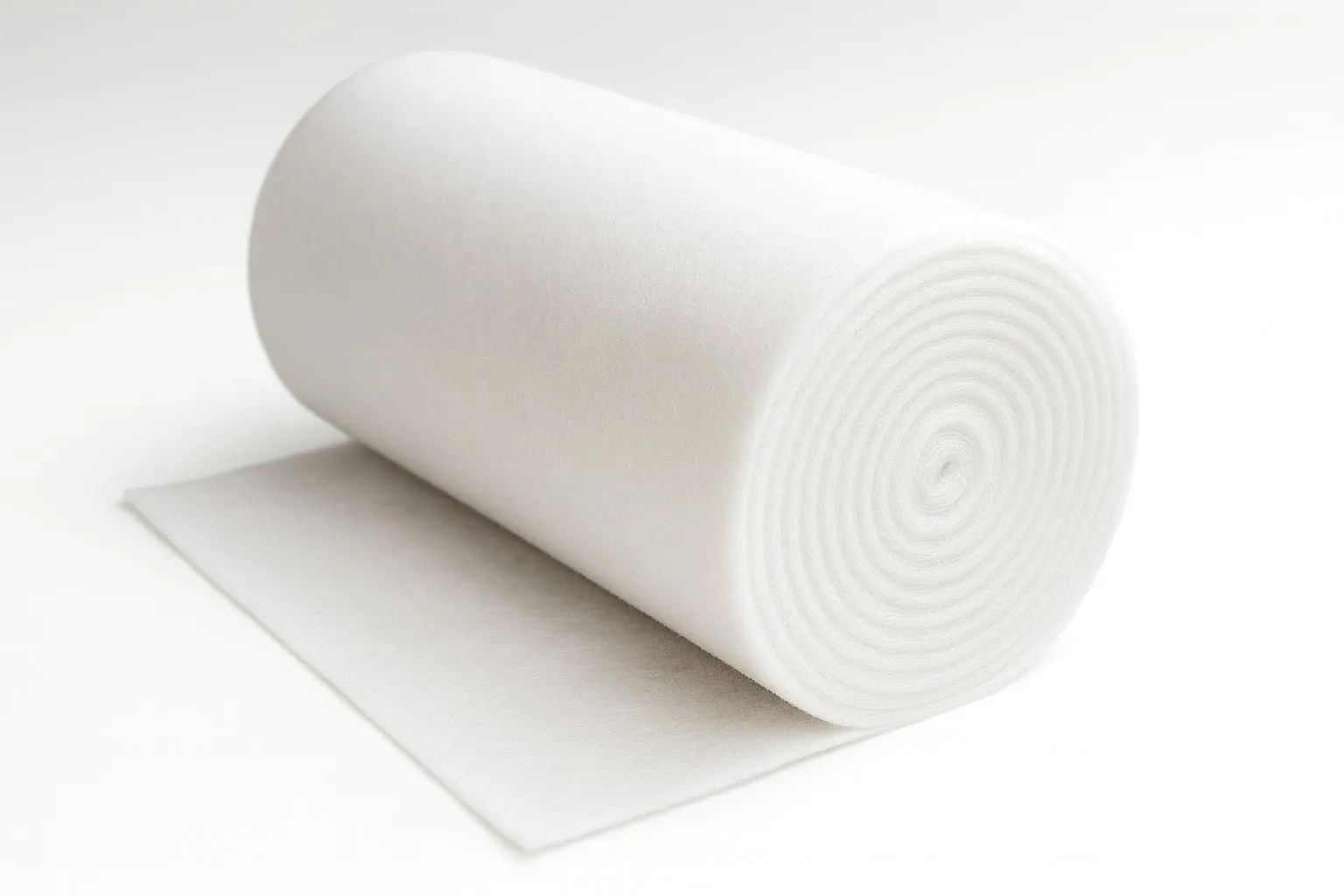

G3 synthetic non-woven filter media is supplied in full rolls for HVAC contractors, filter fabricators, and OEM manufacturers. EN779 G3 grade: average arrestance of ≥80% for coarse airborne particulate. Supplied in 2 m × 20 m rolls, 7 mm thick.
Roll Media vs Finished Panel Filters
Standard G4 panel filters are supplied as rigid framed units in fixed dimensions. They are the correct choice for AHUs with standard filter frames. Roll media fills a different requirement: when the frame dimensions are non-standard, when a custom filter housing is being built, or when the application requires a large-area intake pre-filter that would be uneconomical to assemble from multiple small panels.
G3 roll media is one grade coarser than G4. Its function is coarse pre-filtration, removing large dust particles, textile fibres, insects, and general airborne debris before the air stream reaches downstream filtration stages or equipment. It is not a substitute for G4 or higher efficiency grades in AHU applications where EN779 compliance is required at G4 or above.
Ordering
Filter media is sold by the full roll. There are no partial rolls or minimum order quantities beyond one roll. Contact us with the roll width you need and the number of rolls, and we will confirm availability and pricing same day.
G3 Filter Media Specification
| Filter Grade | G3 (EN779) |
| Media Type | Synthetic non-woven polyester |
| Colour | White |
| Average Arrestance | ≥80% (G3 classification) |
| Initial Resistance | Low: contact us for airflow-specific data |
| Roll Size | 2 m × 20 m (40 m² per roll) |
| Media Thickness | 7 mm |
| Supply Form | Full rolls only |
| Storage | Dry, indoors, away from UV and ozone |
| Shelf Life | 24+ months when correctly stored |
EN779 G3 Grade Explained
EN779 is the European standard for general ventilation air filters. Filters are classified by efficiency grade from G1 to G4 (coarse) and F5 to F9 (fine). G3 is the second-highest coarse grade, providing average arrestance of ≥80% for the synthetic dust test aerosol. It is suitable for applications where large particle and debris exclusion is required, but high efficiency fine filtration is handled by downstream stages.
EN779 has been superseded by ISO 16890 for new installations. Consult your mechanical engineer for current project specification requirements.
G3 synthetic filter media in roll form is used wherever standard panel filter sizes do not apply, or where the volume, area, or economics of the application make roll media the more practical choice. The following are the most common applications.
When an AHU frame does not match any standard panel filter dimension, roll media allows a filter to be cut to exact size on site or in advance. Particularly useful on older imported plant or purpose-built mechanical rooms with bespoke frame dimensions.
Filter fabrication businesses building custom filter assemblies for industrial or HVAC clients source G3 roll media as a base material, cutting and framing to their own specifications and mounting it in purpose-built housings.
G3 media is used to wrap evaporator coils and condensing units as a protective pre-filter during construction or renovation, preventing concrete dust and debris from fouling the coil fins before permanent filtration is installed.
Large-area intake louvres and pre-filter banks on industrial plant buildings use roll media cut to the size of each intake bay. G3 provides debris and large-particle exclusion at outdoor intakes where coarser pre-filtration is appropriate.
G3 roll media is used as a sacrificial intake pre-filter in automotive and industrial spray booth air supply sections, preventing overspray particulate and coarse dust from entering the main filtration bank.
Older installations with reusable filter frames designed for roll-replacement media use G3 roll stock as the correct replacement material, avoiding the need for frame replacement or custom panel orders.
What does G3 filter grade mean?
G3 is a coarse filter classification under EN779. It provides average arrestance of ≥80% for coarse airborne particulate: large dust particles, textile fibres, and general airborne debris. It is one grade coarser than the G4 panel filters used in commercial HVAC AHUs, making it suited to pre-filtration, intake screens, and custom fabrication applications.
What roll size do you supply?
Standard roll size is 2 m wide × 20 m long (40 m² per roll), 7 mm thick. Sold in full rolls only.
Is there a minimum order quantity?
Filter media is sold by the roll. There is no minimum number of rolls, but partial rolls are not available. Contact us to confirm current roll sizes and quantities available from stock.
Can I order a partial roll?
No. Filter media is sold in full rolls only. Contact us to confirm current roll sizes in stock and we will quote accordingly.
What is the shelf life of G3 filter media?
When stored correctly (indoors, dry, away from direct sunlight), G3 synthetic non-woven media retains its structural integrity for 24 months or longer. Store rolls horizontally or standing upright with support. Do not store in areas with chemical fumes or ozone exposure.
How do I request a quote for filter media?
Call Nick Els on +27 74 159 1634 or use the contact form and specify G3 filter media, the roll width you need, the quantity (number of rolls or total linear metres), and your delivery location. We will respond with pricing and availability same day.
